To determine the particle size distribution of coarse aggregates by sieving and finding the fineness modulus.
Mechanical shaker, Trays, Set of fine sieves with pan, Weighing scale etc.
DescriptionFineness Modulus of Coarse Aggregate is a measure of size of particles of coarse aggregate. It is an imperial factor obtained by adding the cumulative percentages of coarse aggregate retained on each of the standard sieves and dividing the sum by an arbitrary number 100.Take coarse aggregate in a pan and measure it to 1Kg using the weighing scale.
0.000 g
1000.00 g
Arrange the sieves in the decreasing order of their size and place the pan at the bottom and then add weighed quantity of fine aggregate to the top most sieve and close the lid.

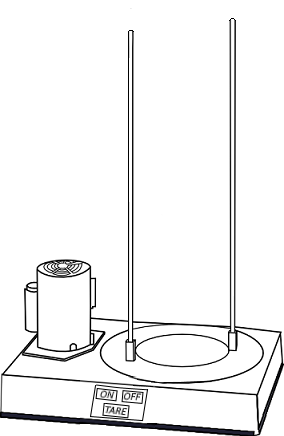

Place the set of sieves in the mechanical shaker and allow to shake for 10 minutes.
Collect the soil fraction retained on each sieve in a separate container and weigh it.
0.000 g
Observations:
Sievesize(mm) | Weightretained(g) | PercentgeweightretainedWeight retained x 100⁄Weight of coarse aggregate taken | Cumulativepercentageweightretained (Cumulative % weight retained of sieven + % weight retained of sieven-1) | Cumulativepercentagefiner 100 - Cumulative % weight retained of sieven | FinenessmodulusSum of cumulative % weight retained⁄100 |
---|---|---|---|---|---|
80 | 0 | ||||
40 | 0 | ||||
20 | 2622.5 | ||||
16 | 349.25 | ||||
10 | 28.25 | ||||
4.75 | 0 | ||||
2.36 | 0 | ||||
1.18 | 0 | ||||
0.6 | 0 | ||||
0.3 | 0 | ||||
0.15 | 0 | ||||
Pan | 0 | ||||
3000 |
*Hover on the table headings to know the formula
The fineness modulus of coarse aggregate should be in the range of
1-2 2-4 4-6 6-8
