Standard Consistency of cement
Objective
To determine the standard consistency of given sample of cement by Vicat apparatus.
Apparatus used:
Vicat apparatus with Vicat plunger, Vicat mould, Measuring jar, Weighing scale, Trowel etc.
Description Standard Consistency of Cement is defined as that consistency which will permit the Vicat plunger to a point 5mm to 7mm from the bottom of the Vicat mould.
Take cement in a pan and measure 300g of cement using the weighing scale.
00.00 g
300.00 g
Take water of about weight of dry cement a nd mix it thoroughly with the cement using trowel. The gauging time should not be more than 3 to 5 minutes.
Percentage of water =
Quantity of cement taken = 300g
✔
✘
Quantity of water to be added = Percentage of water x Quantity of cement taken⁄100✔
✘
Quantity of water to be added = Percentage of water x Quantity of cement taken⁄100

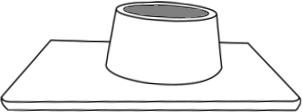

Fill the Vicat mould resting upon non-porous plate.

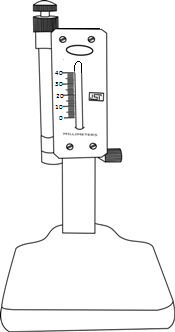

Fix the 1mm2 Vicat plunger and the place the mould under the test setup.
Initial Reading = 40mm
Lower the plunger to touch the surface of the mould and release it quickly to sink into the paste.
Final Reading =
Observation and Results:
Quantity of water added = ml
Initial Reading = 40mm
Final Reading =
Repeat the the sampe procedure for 30% and 32% of water
| Percentage of Water | Initial Reading (mm) | Final Reading (mm) |
|---|---|---|
| 26 | 40 | 28 |
| 28 | 40 | 19 |
| 30 | 40 | 11 |
| 32 | 40 | 6 |
Inference:
The percentage of water required for the given sample to be in acceptable range of Standard Consistency is
26 28 30 32Trial =
